SATIS CO., LIMITED - your reliable partner for weighing products
9 Years
| Ask Lasest Price | |
| Brand Name : | SATIS |
| Model Number : | SAL304A |
| Certification : | N/A |
| Price : | USD 90 - 120 per unit |
| Payment Terms : | T/T |
| Supply Ability : | 3000 units per month |
| Delivery Time : | 30 working days |
Features
Specification
| Maximum capacity (Emax) | t | 1, 2.2, 3.3, 4.7 |
| Rated output (Cn) | mV/V | 2.85 ± 0.015 |
| Accuracy | ±%FS | 0.05 |
| Max. number of intervals (nLC) | - | 3000 |
| Creep (30 minutes) | ±%FS | 0.02 |
| Zero balance | ±%FS | 1 |
| Temperature effect on zero balance (TCO) | ±%FS/10°C | 0.02 |
| Temperature effect on sensitivity (TC Span) | ±%FS/10°C | 0.02 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 200 |
| Nominal temperature range | °C | -10 ... + 40 |
| Operating temperature range | °C | - 30 ... + 70 |
| Input impedance | Ω | 1450 ± 10 |
| Output impedance | Ω | 1402 ± 5 |
| Insulation impedance | MΩ | ≥ 5000 |
| Recommended excitation | V DC/AC | 10 -12 |
| Excitation maximum | V DC/AC | 15 |
| Material | - | Alloy steel |
| Protection class | - | IP68 |
| Cable | - | Length: 8m or customize special length to order; Diameter: Φ 6mm |
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

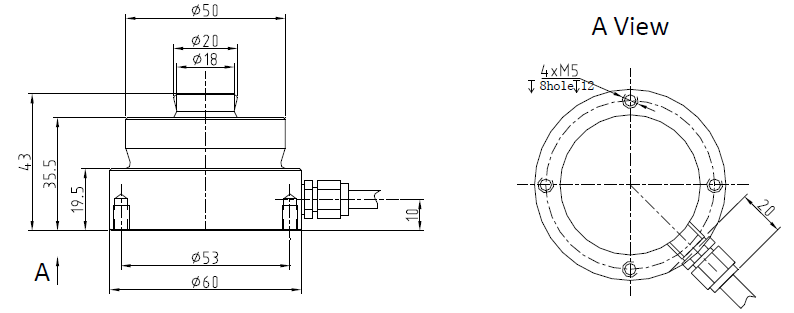

Dimension
Accessories
Accessory model: type b mounting
Notes:
The mounting is optional in your order, if you need it, please list out in your inquiry and order
|
|
