SATIS CO., LIMITED - your reliable partner for weighing products
9 Years
| Ask Lasest Price | |
| Brand Name : | SATIS |
| Model Number : | SAL401a |
| Certification : | OIML |
| Price : | USD 10-20 per unit |
| Payment Terms : | T/T |
| Supply Ability : | 3000 units per month |
| Delivery Time : | 30 working days |
Features

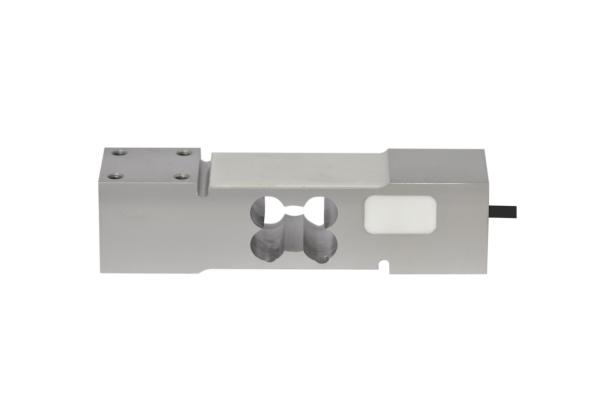

Specification-SAL401(a)
| Maximum capacity (Emax) | kg | 60, 100, 150, 200, 250, 300 |
| Rated output (Cn) | mV/V | 2,0 ± 0,2 |
| Accuracy | - | OIML C3 |
| Max. number of intervals (nLC) | - | 3000 |
| Creep (30 minutes) | ±ppm | 166 |
| Zero balance | ±%FS | 3 |
| Temperature effect on zero balance (TCO) | ±ppm/°C | 17.5 |
| Temperature effect on sensitivity (TC Span) | ±ppm/°C | 17.5 (+20~+40°C); 11.7(-10~+20°C) |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 300 |
| Nominal temperature range | °C | -10 ... + 40 |
| Operating temperature range | °C | - 20 ... + 50 |
| Input impedance | Ω | 404 ± 10 |
| Output impedance | Ω | 350 ± 3 |
| Insulation impedance | MΩ | ≥ 2000 |
| Recommended excitation | V DC/AC | 10 |
| Excitation maximum | V DC/AC | 15 |
| Material | - | Aluminium |
| Protection class | - | IP65 |
| Cable | - | Length: 2m or customize special length to order; Diameter: Φ 5mm |
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.
Dimension-SAL401(a)
Accessories
N/A
|
|
