| Brand Name : | SATIS |
| Model Number : | SAL200A |
| Certification : | OIML TC8157 |
| Price : | USD18-29 per unit |
| Payment Terms : | T/T |
| Supply Ability : | 3000 units per month |
| Delivery Time : | 30 work days |
Load cell SAL200A
SAL200A load cell compatible to Tedea 3140 Zemic H8C alloy steel with OIML approval
Features
Specification
| Maximum capacity (Emax) | kg | 150, 250,300,500,750 | 1000, 1500,2000, 2500,3000,5000 |
| Rated output (Cn) | mV/V | 2.0±0.002 | 3.0±0.003 |
| Accuracy | - | OIML C3 | |
| Max. number of intervals (nLC) | - | 3000 | |
| Creep (30 minutes) | ±%FS | 0.0166 | |
| Zero balance | ±%FS | 1 | |
| Temperature effect on zero balance (TCO) | ±%FS/10°C | 0.02 | |
| Temperature effect on sensitivity (TC Span) | ±%FS/10°C | 0.02 | |
| Safe overload | %FS | 120 | |
| Ultimate overload | %FS | 200 | |
| Nominal temperature range | °C | -10 ... + 40 | |
| Operating temperature range | °C | - 30 ... + 70 | |
| Input impedance | Ω | 400 ± 10 | |
| Output impedance | Ω | 352 ± 3 | |
| Insulation impedance | MΩ | ≥ 5000 | |
| Recommended excitation | V DC/AC | 10 - 12 | |
| Excitation maximum | V DC/AC | 15 | |
| Material | - | Alloy steel | |
| Protection class | - | IP68 | |
| Cable | - | Length: 4m for 150-2500kg; 6m for 3000-5000kg; or customize special length to order; Diameter: Φ 5mm | |
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.
Dimension

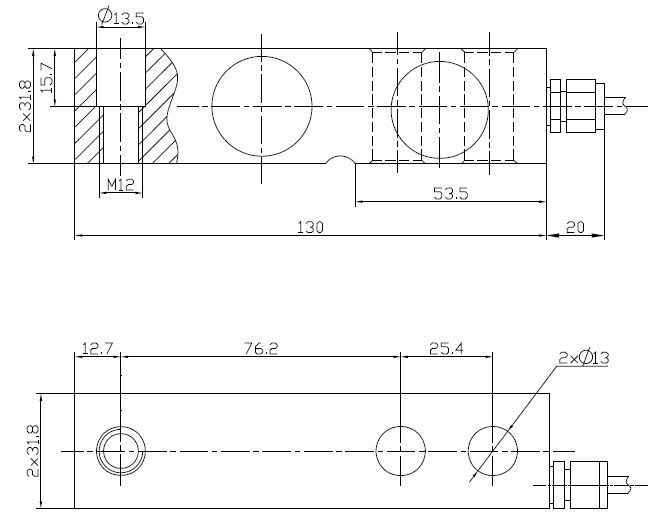

150 to 750kg: Dimension unit: mm

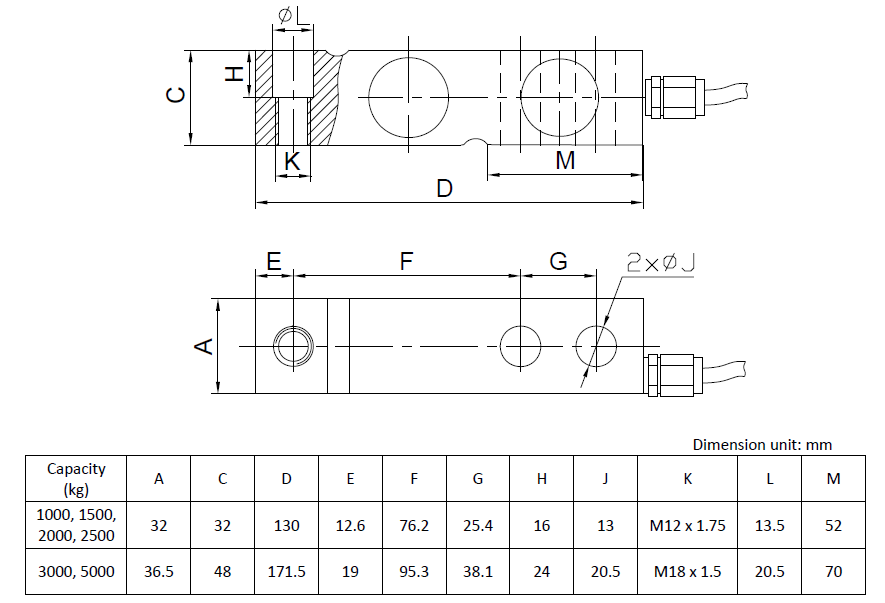

1000-5000kg:
|
|
